PENDANT
BUY NOW: $1,185.00

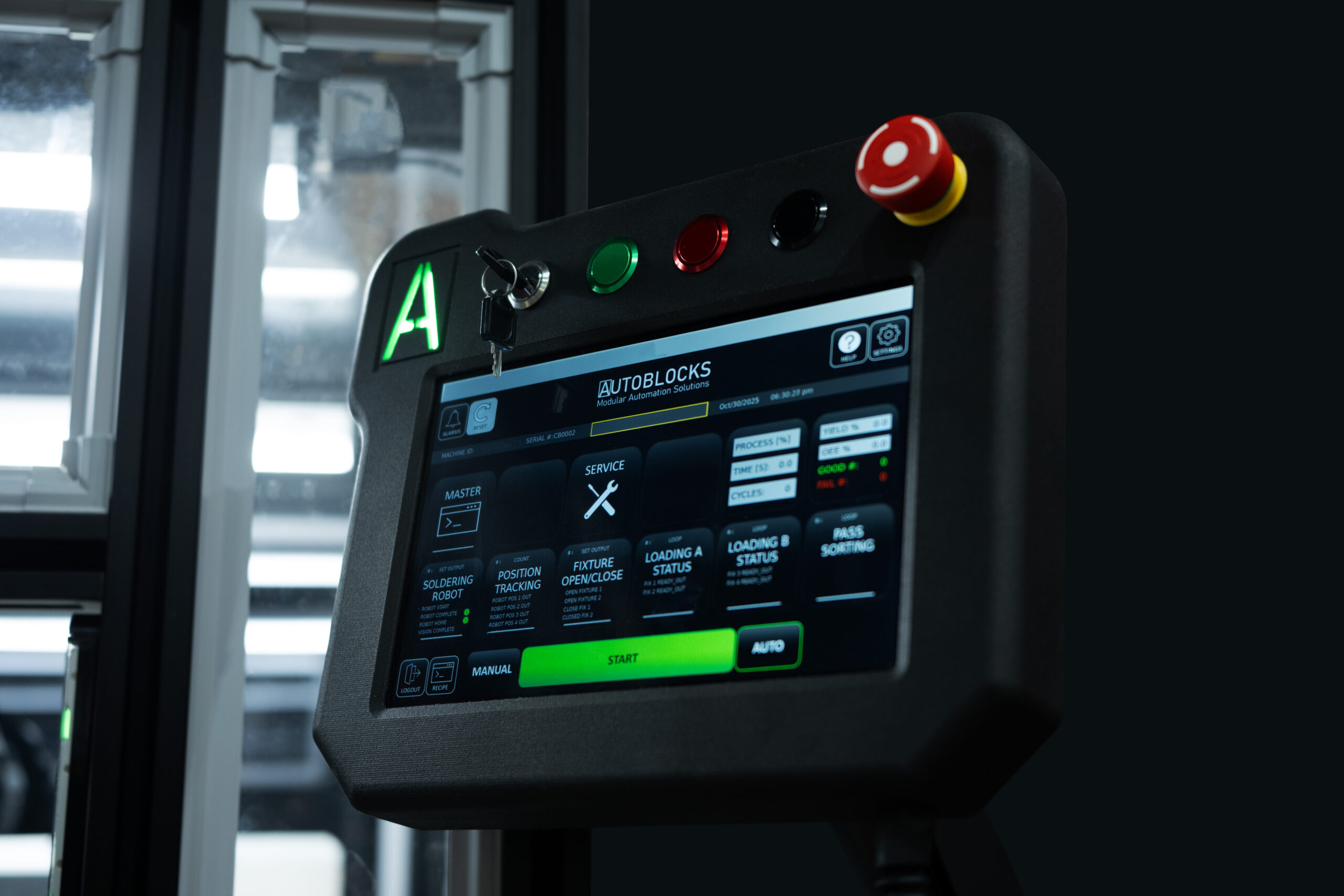

PENDANT The face of your machine.
Every Control Block deserves an interface worthy of it. The Pendant is that interface — a precision-engineered 10.1-inch capacitive touchscreen that puts complete machine control exactly where it belongs: in your hands.
Designed as a direct extension of the Control Block, the Pendant runs AutoCode natively — giving operators full access to motion control, machine logic, safety management, and system diagnostics from a single, purpose-built surface. No external panels. No third-party software. No compromises.
Product Description
PENDANT The face of your machine.
Every Control Block deserves an interface worthy of it. The Pendant is that interface — a precision-engineered 10.1-inch capacitive touchscreen that delivers complete machine control from a single, purpose-built surface. No external panels. No third-party software. No compromises.
Built for the floor. Connected to everything.
The Pendant is industrial-grade from the ground up. Integrated dual-redundant NC E-stop. Start, Stop, and Reset hardwired safety buttons. Keyed teach-mode switch. Single DB15 cable to the Control Block — power, data, and safety in one connection. RGB-backlit “A” status LED reflects machine state at a glance. USB 2.0 file management for recipes and backups.
Your screen. Our intelligence.
For machine builders who prefer their own display hardware, the HMI Hub delivers the full AutoCode experience on any 1280×800 touch monitor via a single HDMI and USB connection. Preloaded. Preconfigured. Ready to run.
Specifications
- 10.1″ high-resolution capacitive multi-touch touchscreen, 1280×800
- Dual-redundant NC E-stop · Start · Stop · Reset
- Keyed teach-mode switch (operator / manager)
- RGB LED-backlit “A” status logo
- USB 2.0 file management
- Single DB15 connection to Control Block (power + data + safety)
- VESA 75 mm × 75 mm mounting
- Compatible with third-party displays via HMI Hub
Display:
Screen Size: 10.1 inches
Resolution: 1280×800 pixels
Type: Multi-touch capacitive touchscreen
Status Light: RGB LED-backlit “A” logo — reflects machine state
Software:
Preloaded with AutoCode
Pair with Autoblocks Studio for offline programming, diagnostics & support
Fully compatible with Autoblocks Control Block systems
Connectivity:
Single DB15 cable connection (power, data, safety)
USB 2.0 Port
Mounting:
Standard VESA mounting holes (75mm × 75mm)
Wall, arm, pedestal, or machine mountable
Build Quality:
Enclosure: Reinforced nylon with a durable, rugged black finish
Ingress Protection: IP54 — dust-protected, splash-resistant
Shock & Vibration: IEC 60068-2-6 & IEC 60068-2-27
User Interface:
Configurable jog and teach interfaces for manual operation
Responsive touch controls for easy navigation
Dimensions & Weight:
Dimensions: 13″ W × 10″ L × 1.5″ H
Weight: ~1 lb
Environmental Specifications:
Operating Temperature: −20°C to 50°C (−4°F to 122°F)
Storage Temperature: −40°C to 70°C
Humidity: 5% to 95% non-condensing
Power: Powered from the Control Block via DB15
Safety:
Integrated dual-redundant normally-closed E-stop button. Hardwired Start, Stop, and Reset safety buttons. Keyed teach-mode switch enforces operator vs. manager access.
Display:
Screen Size: 10.1 inches
Resolution: 1280×800 pixels
Type: Multi-touch capacitive touchscreen
Status Light: RGB LED-backlit “A” logo — reflects machine state
Software:
Preloaded with AutoCode
Pair with Autoblocks Studio for offline programming, diagnostics & support
Fully compatible with Autoblocks Control Block systems
Connectivity:
Single DB15 cable connection (power, data, safety)
USB 2.0 Port
Mounting:
Standard VESA mounting holes (75mm × 75mm)
Wall, arm, pedestal, or machine mountable
Build Quality:
Enclosure: Reinforced nylon with a durable, rugged black finish
Ingress Protection: IP54 — dust-protected, splash-resistant
Shock & Vibration: IEC 60068-2-6 & IEC 60068-2-27
User Interface:
Configurable jog and teach interfaces for manual operation
Responsive touch controls for easy navigation
Dimensions & Weight:
Dimensions: 13″ W × 10″ L × 1.5″ H
Weight: ~1 lb
Environmental Specifications:
Operating Temperature: −20°C to 50°C (−4°F to 122°F)
Storage Temperature: −40°C to 70°C
Humidity: 5% to 95% non-condensing
Power: Powered from the Control Block via DB15
Safety:
Integrated dual-redundant normally-closed E-stop button. Hardwired Start, Stop, and Reset safety buttons. Keyed teach-mode switch enforces operator vs. manager access.
Autoblocks Pendant Spec — Rev 11
